ADDING/REMOVING GAMES VIA THE PARAMETERS BUTTON
The Parameters button displays product details for each existing game on the terminal. Use this function to Add a new game or Remove an existing game.

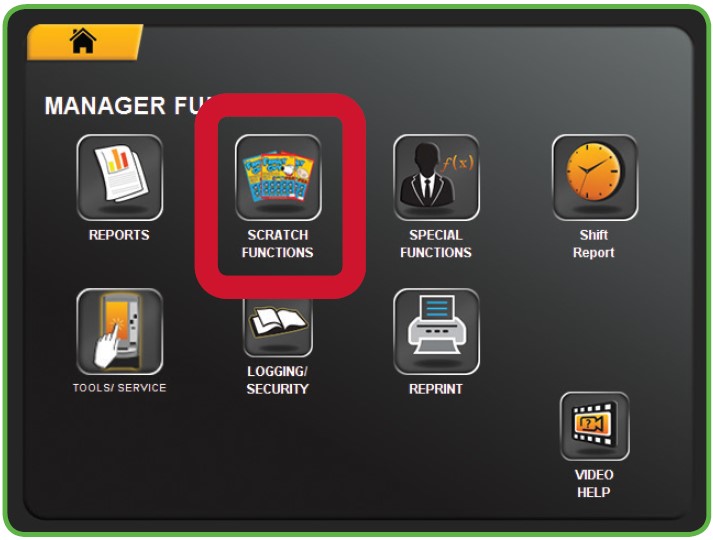

1. Touch SCRATCH FUNCTIONS from the Manager Functions Menu. Then, touch SCRATCH TICKET MANAGEMENT.
2. Touch the desired BIN NUMBER.

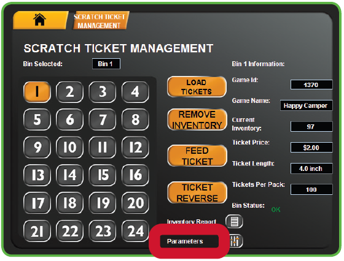

3. Touch PARAMETERS.
4. TO REMOVE AN EXISTING GAME: Touch REMOVE. A Confirmation screen displays. Touch the GREEN CHECKMARK to continue, or touch the RED X to cancel.

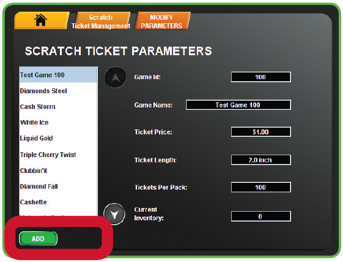

5. TO ADD A NEW GAME: Touch ADD. Enter the Game ID, then touch the GREEN CHECKMARK.
Adding / Removing Games
LOADING TICKETS: FULL OR PARTIAL PACKS USING MANUAL ENTRY

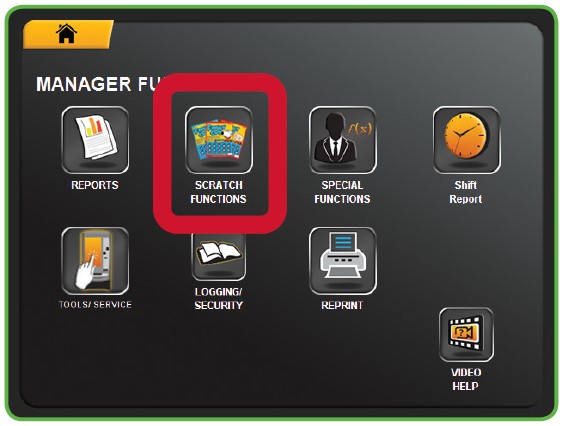

- Touch SCRATCH FUNCTIONS from the Manager Functions Menu. Then, touch SCRATCH TICKET MANAGEMENT.
- Touch the desired BIN NUMBER. Touch UNLOAD on the desired Bin (if needed).

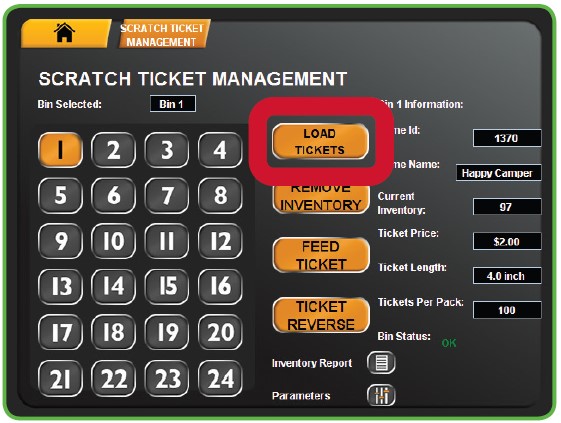

- Touch LOAD TICKETS.
- Enter the Game, Pack and FIRST ticket number manually, then touch the GREEN CHECKMARK.
- If you are loading a Full Pack, touch FULL PACK.
- If you are loading a Partial Pack, enter the Game, Pack, and LAST ticket number manually, then touch the GREEN CHECKMARK.
- The system proceeds to Activate the pack automatically. A confirmation screen displays. Touch the GREEN CHECKMARK.

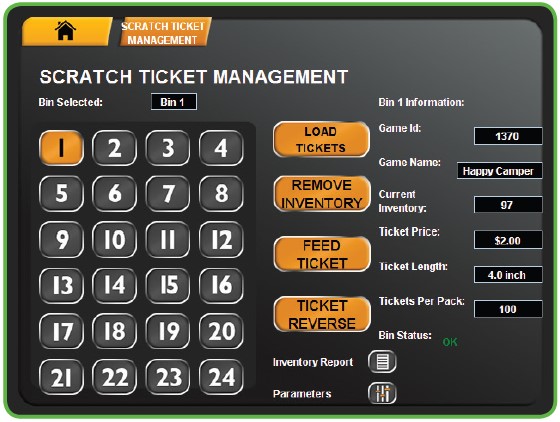

NOTE: Selecting the FEED TICKET option from the Scratch Ticket Management screen moves tickets in the selected bin forward. Selecting the TICKET REVERSE option from the Scratch Ticket Management screen reverses the ticket in the selected bin.
Manual Entry Full or Partial Packs
QUICK LOAD USING BAR CODE SCANNER:
PARTIAL PACK
- Touch SCRATCH FUNCTIONS from the Manager Functions Menu. Then, touch SCRATCH TICKET MANAGEMENT.
-
Pick up the 2D reader from the cradle.
-

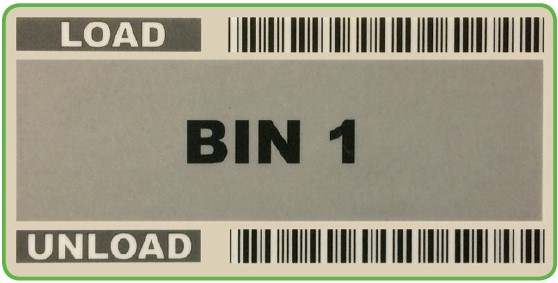

Scan LOAD barcode on the desired Bin.
-
Scan the FIRST TICKET in the pack. Then, touch the GREEN CHECKMARK.
-
Scan the LAST TICKET in the pack. Then, touch the GREEN CHECKMARK.
-
The Pack Activates and Loads. Touch the GREEN CHECKMARK.
